XGJ Type Suspension Clamps

XGJ Type Suspension Clamps Description:

Suspension clamps are mainly used for overhead power lines or substations, through the coupling fittings will conductor, lightning line suspended on the insulator or the lightning line suspended on the tower, can also be used for transposition of the tower to support the transposition of the conductor as well as non-linear tower jumper fixed. And XGJ type suspension wire clamp is one of the types with specific structure and function.

XGJ Type Suspension Clamps Features:

Structural form: the structure of XGJ type Suspension clamps is reasonably designed and usually made of aluminium alloy material, which has the features of light weight, high strength, corrosion resistance and so on.

Scope of application: The wire clamp is suitable for all kinds of overhead power lines, especially aluminium stranded wire and steel core aluminium stranded wire, which can be wrapped with aluminium cladding tape or guard line outside the wire to protect the wire.

Easy installation: the installation process of XGJ type suspension clamp is relatively simple, usually fixed on the pole tower or insulator by bolts, nuts and other fixed parts.

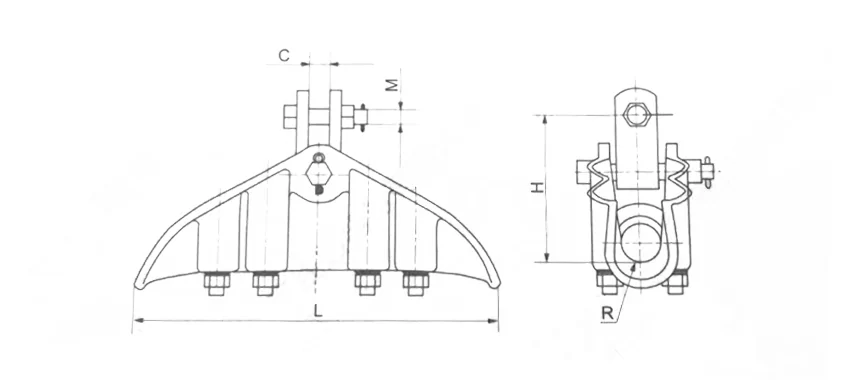

XGJ Type Suspension Clamps Specification:

XGJ type suspension clamp are available in a variety of models and specifications to meet the needs of different power lines. Common models include XGJ-2, XGJ-3, XGJ-4, XGJ-5, etc. Each model has its specific range of applicable conductor diameters and main dimensions. For example:

• XGJ-2: Applicable conductor diameter range is Φ11.0~13.0mm.
• XGJ-3: Applicable to conductor diameter range of Φ13.1~18.0mm.
• XGJ-4: Applicable to conductor diameter range of Φ21.1~23.0mm.
• XGJ-5: Applicable to conductor diameter range of Φ23.0~43.0mm.

XGJ Type Suspension Clamps Function:

Suspension wire: The main function of XGJ type suspension clamp is to suspend the wire and keep it in a certain position and height to ensure the stability and safety of the power line.

Withstand the load: the line clamp can withstand the conductor in the vertical gear distance all the load, including the conductor weight, the maximum ice cover and the maximum wind load.

Protect the wire: through reasonable structural design and material selection, XGJ type suspension clamp can effectively protect the wire from damage and prolong the service life of the wire.
