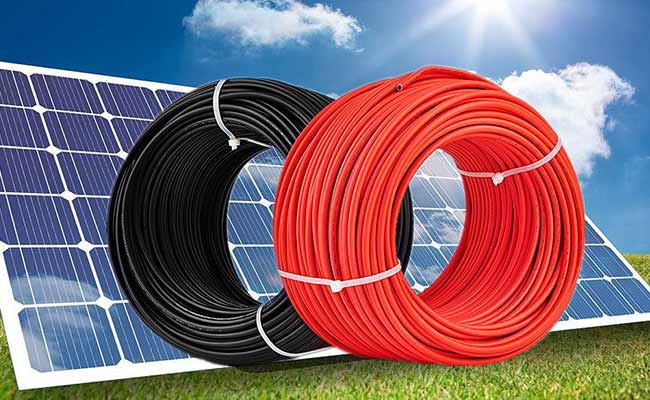

Solar DC Cable — Flexible DC Solar Direct Current Cable Designed For Solar Project Solar Panel
H1Z2Z2-K 1.5kV DC PV Cable
- Voltage Rating Uo/U: AC: 1000/1000V; DC: 1500/1500V
- Maximum Voltage (Umax): 1800V
- Conductor: Class 5 flexible tinned copper conductor
- Insulation: Halogen-free cross-linked compound
- Sheath: Halogen-free cross-linked, flame retardant compound
- Sheath Colour: Black; Other colours available on request
H1Z2Z2-K NTS Stainless Steel Shield Braid DC Cable
- Voltage: AC:1000/1000 V; DC: 1500/1500 V
- Conductor: Copper wire tinned
- Core insulation: cross-linked compound
- Outer sheath: cross-linked compound
- Stainless steel braiding (V2A)
Single Core & 2 Core XLPO/XLPO PV1-F Solar DC Cable
- Voltage: AC:1000/1000 V; DC: 1500/1500 V
- Conductor: Copper wire tinned
- Insulation: XLPO Cross-linked Polyolefin
- Sheath: XLPO Cross-linked Polyolefin
PV AL 1500V Cable
- Voltage: DC:1,5 / 1,5 kV; AC: 1,8/3 (3,6) kV
- Conductor: Aluminium, class 2 based on EN 60228 and IEC 60228.
- Insulation: Cross-linked polyethylene (XLPE) according to IEC 60502-1. Natural color.
- Outer sheath: Special flexible UV resistant PVC, type ST2 according to IEC 60502-1. Black color.
PV AWA/SWA AL 1500V Cable
- Voltage: DC:1,5 / 1,5 kV; AC: 1,8/3 (3,6) kV
- Conductor: Aluminium, class 2 based on EN 60228 and IEC 60228.
- Insulation: Cross-linked polyethylene (XLPE) according to IEC 60502-1. Natural color.
- Armor: Aluminum wire armor (AWA) is used for single-core cables to prevent stray currents that can cause overheating. Galvanized steel wire (SWA) is used for multi-core cables.
- Outer sheath: Special flexible UV resistant PVC, type ST2 according to IEC 60502-1. Black color.
