SGB Series Dry-Type Transformer

SG (B) Series Dry-Type Transformer Introduction

SG (B) 10 series dry-type transformer adopts the special technology of European dry-type transformer, which ensures that the product fully meets the requirements of fireproof, waterproof and environmental protection. It is an ideal product for power distribution system, widely used in underground, shipbuilding, mining, chemical industry, electric power enterprises and crowded buildings and other occasions with special requirements for safety.

SG (B) Series Dry-Type Transformer Working Principle

Our SGB series dry-type transformer is mainly composed of three parts: iron core, winding and shell. When AC power is fed into the high-voltage winding of the dry-type transformer, it will generate a changing magnetic field in the iron core. The changing magnetic field induces an electromotive force in the low-voltage winding, which generates a current. The current is proportional to the current in the high voltage winding and is in the opposite direction. The current output from the low-voltage winding can be used to drive various electrical devices, realising the transmission and conversion of electrical energy.

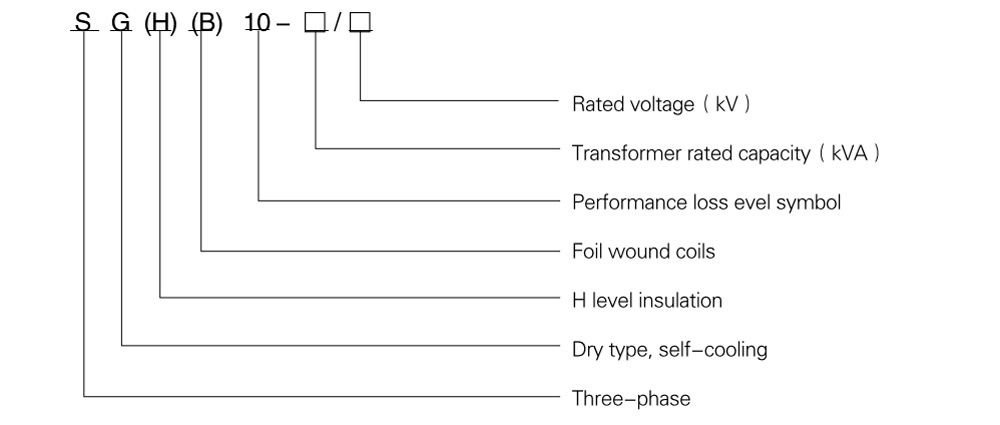

SG (B) Series Dry-Type Transformer Model

SG (B) Series Dry-Type Transformer Features

Good safety performance: the insulation material contains only a very small amount of combustible substances, and non-toxic, self-extinguishing, the product is refractory, flame retardant, non-toxic, self-extinguishing, fire prevention. Under high temperature open flame combustion, the transformer almost does not produce smoke. Suitable for high-rise buildings, airports, subways, metallurgy and petrochemical, shopping malls and other key areas with high fire requirements and large loads.

High reliability: Elaborately designed coil structure and vacuum pressurised impregnation process, vacuum pressurised impregnation curing treatment of the coil, coil pressing using briquetting structure. Low local discharge electrode, no crack phenomenon, no phenomenon of decreasing insulation level.

Energy saving and environmental protection: the product performance loss is low, energy saving effect is obvious. After the product is scrapped, it can be decomposed and recycled. The insulating material is degradable and does not pollute the environment. It can effectively protect the ecological environment.

Excellent quality: After repeated vacuum impregnation and high-temperature curing, its insulation strength is greatly improved, and partial discharge capacity is reduced. At the same time, its unique open structure is very conducive to heat dissipation. The product has strong overload operation capability.

SG (B) Series Dry-Type Transformer Applications

Petrochemical: In the petrochemical industry, SGB series dry-type transformers are used to supply power to various production equipment and processes. They can adapt to harsh environmental conditions, such as high temperature, humidity, corrosion, etc., to ensure the normal operation of production equipment.

Iron and steel enterprises: Iron and steel enterprises need a large amount of electricity to drive various production equipment, SGB series dry-type transformers can provide a stable and reliable power supply to meet the production needs of iron and steel enterprises.
