Power Supply System

Include: 1. Flatpack2 Integrated power system; 2. Rectiverter Integrated/Standalone 3kVA 1phase, 48 VDC; 3. Rectiverter Integrated 2U, 48VDC 6kVA 1ph; 4. Flatpack S 24V 2U 3R 2-pole.

*The price of the product is determined by the volume of your order. We always try to provide our customers with unique discounts and delivery times for their order.

DESCRIPTION
SPECIFICATION
TECHNICAL & SALES SUPPORT

(1) Flatpack2 Integrated power system

The combination of cost-effective design, power density and reliability makes the Flatpack2 a product family that truly stands out and provides unparalleled network availability

Flatpack2-Integrated-power-system-diagram-01

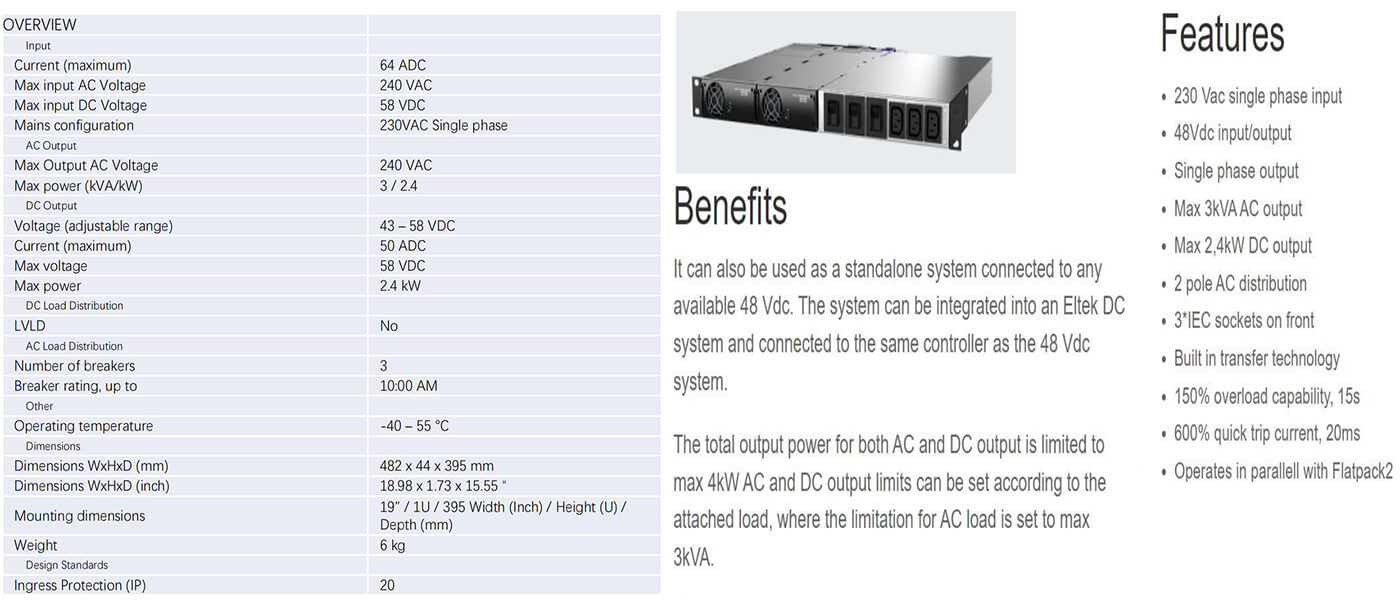

(2) Rectiverter Integrated/Standalone 3kVA 1phase, 48 VDC

The Rectiverter integration/standalone system can be used in applications where a 230/115 Vac backup is needed in parallel with the 48 Vdc backup.

Rectiverter-IntegratedStandalone-3kVA-1phase-48-VDC-diagram-01

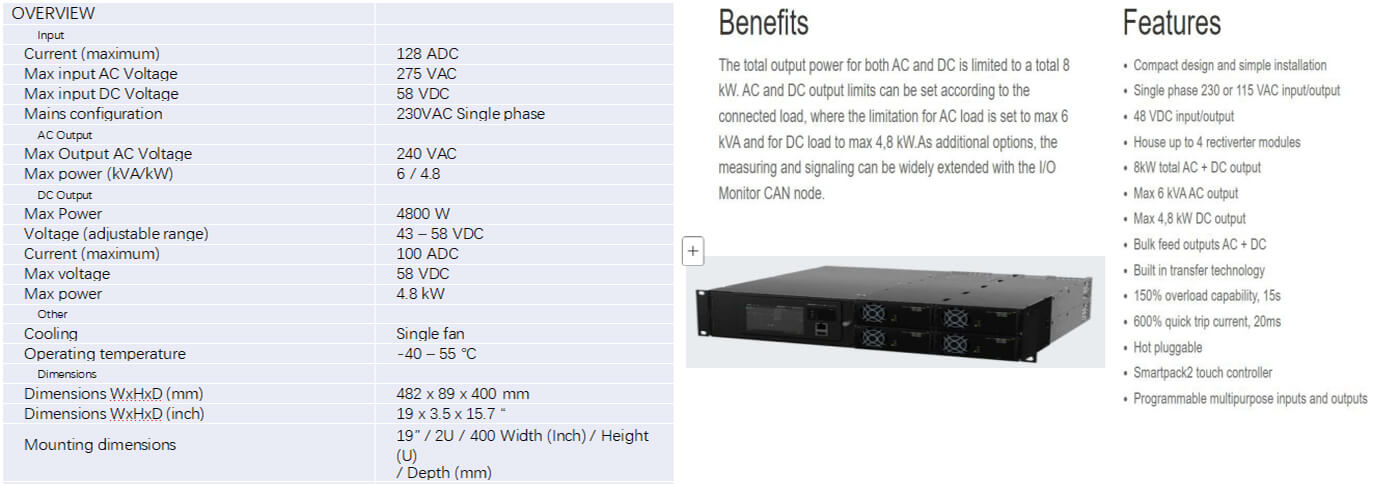

(3) Rectiverter Integrated 2U, 48VDC 6kVA 1ph

The Rectiverter 2U 19” Integrated System can be used as a standalone system with bulk AC & DC outputs in telecom applications where a 230/115 VAC and 48 VDC backup is needed.

Rectiverter-Integrated-2U-48VDC-6kVA-1ph-diagram-01

(4) Flatpack S 24V 2U 3R 2-pole

This small power dense system is purely based on pluggable breakers and rectifiers and can easily be configured to fit your required application, even in field. The combination of Flatpack S HE rectifiers and Smartpack S controller ensures safe, reliable and environmental friendly operation. With its shallow depth and flexibility the Flatpack S 2U 2-pole system fits most cabinets and is thereby excellent as replacement unit.

Flatpack-S-24V-2U-3R-2-pole-diagram-01
