Outdoor Network Cabinet
The new generation communication energy solution is famous for its simplicity, Intelligent and efficient features help carriers achieve simple and complete network deployment Network energy saving, efficient operation and smooth future evolution.
- DESCRIPTION
- SPECIFICATION
- TECHNICAL & SALES SUPPORT
Outdoor ODC cabinet(Mini-shelter)

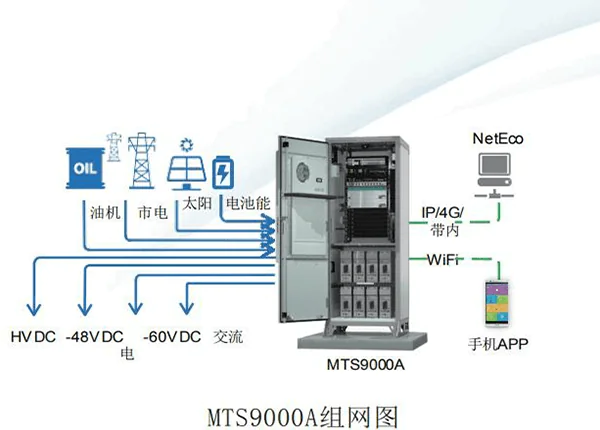

The new generation communication energy solution is famous for its simplicity, Intelligent and efficient features help carriers achieve simple and complete network deployment Network energy saving, efficient operation and smooth future evolution. The solution is highly integrated with power supply system, temperature control system and station monitoring The system and reception system provide safe and reliable energy supply for the main equipment And the working environment.
ODC cabinets can be customized according to customer requirements

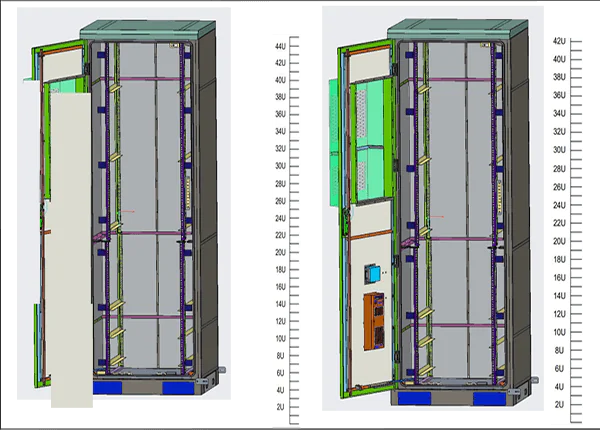

- 1. Cabinet dimensions 30U- 44U （Optional）
- 2. Cabinet width 600mm to 1200mm (optional)
- 3. Cabinet cooling Fans, air conditioners, and heat exchangers (optional)
- 4. Cabinet protection level,IP55\IP65\IP66(optional)
- 5. The cabinet wall panel can be PU or rockwool

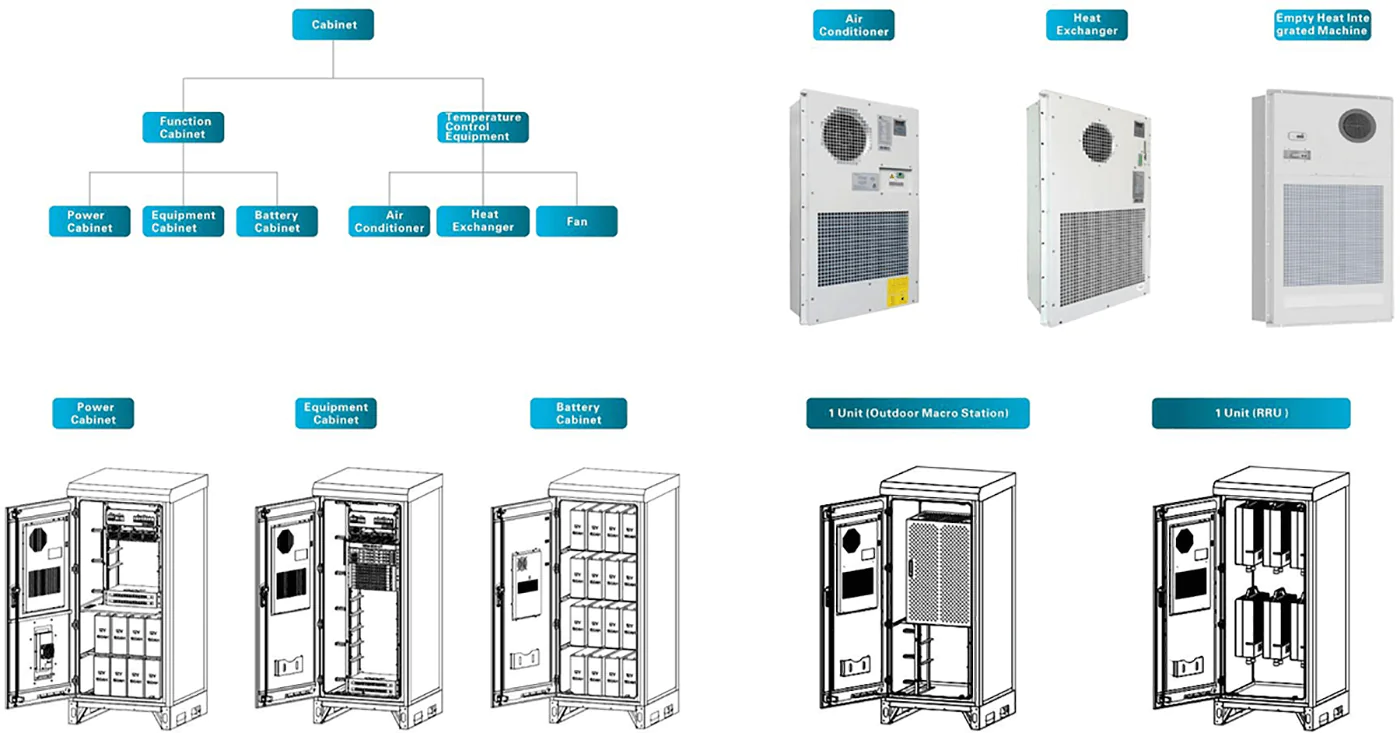

Classification of cabinet
| Equipment cabinet(31U-40U) | ||
| 1.8 M Equipment Cabinet | 1.8M Power Cabinet | 1.8M Battery Cabinet |
| 1.4M Equipment Cabinet | 1.4M Power Cabinet | 1.4M Battery Cabinet |
Outdoor Network cabinet (HIGH-END TYPE2-TYPE4)

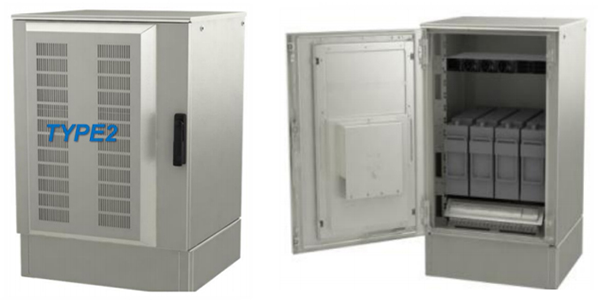

TYPE2
Outdoor power cabinet PHYSICALSPECIFICATIONS ExteriorHeight 743mm(29,37 1047,5mm(41,2″) 586mm(23,12 The Type 2 cabinet platform is designed for a varietyofapplications and can betailoredto fit your specific needs. The cabinet is well suited for power batteres and telecom/industrial equipment,all ntegrated into a robust package.

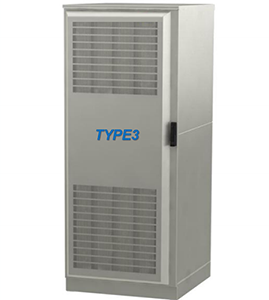

TYPE3
Single bay cabinet woks very well as s stand-alone power /battery backup solution. can be as well used as expansion cabinet for telecom/ industrial equipment or battery backup expansion cabinet. Single bay cabinet is ecomomical solution in applications where single climate zone in cabinet is requirement.

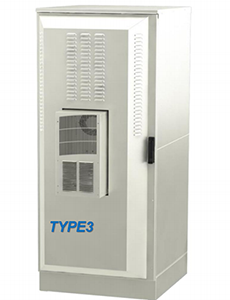

Dual Chamber Cabinet splits the cabinet into to two climate zones. Top zone cools the electrical equipment with a fan and filter , while the bottom zone cools the batteries with a small air-conditioner. With its Unique feature of cooling the batteries only with an air-conditioner, you will save capital cost as well as operationg cost.
With a dual bay cabinet you are able to combine power, batteries, telecom equipment and even an indoor BTS in one cabinet stand. This unique solution gives you the best flexibility and provides easy use of indoor BTS’s used in an Outdoor Cabinet. The right bay can also be equipped with high capacity batteries for hybrid sites for cyclic gen sets or solar/wind powered sites.
The Type 3 cabinet platform is designed for a variety aplications and can be tailored to fit your specific needs. The cabinet is well suited or power, batteries and telecom/industrial equipment, all integrated into a robust package. This solution has a unique cube design that give flexibility to easily have various heights of cabinets.

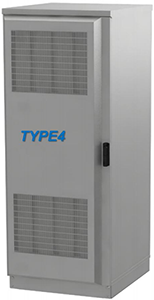

Type 4
Reliability within the outdoor plan depends upon a COOI, dry and securl for electronics as the DC power and Telecon equipment. The Type 4 Outdoor Power Cabinet more than accomplishes this with it: Thermal Management that will keel electronics functioning environments
