LV armoured cable
LV swa armoured cable designed for use in mains supply electricity. These cables are provided with mechanical protection are therefore suitable for external use and direct burial.Such as: power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals and high-rise buildings.
- DESCRIPTION
- SPECIFICATION
- TECHNICAL & SALES SUPPORT
Huadong Group LV armoured cable range includes European low voltage power cables N2XFGbY, NA2XRY & NA2XRH with a voltage rating of 600/1000V and cables with armoured protection for specific applications such as traffic signalling. It also includes N2XSLCYRY cables and RMVM & RVMAV cables which, unlike most other armoured cables has Class 5 flexible stranded conductors, for equipment connections where the termination requires additional flexibility.

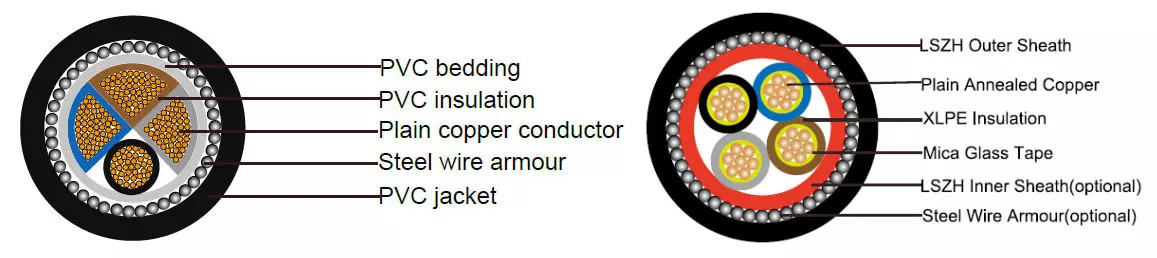

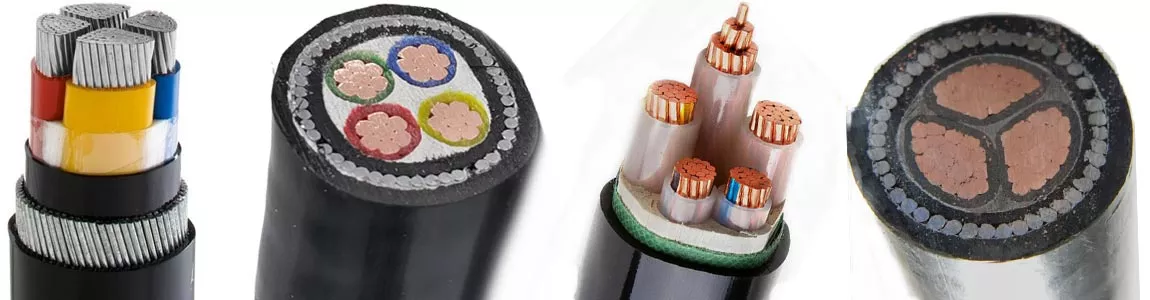

LV Armoured XLPE Cable Structure:
- Voltage: 600/1000V
- Conductor: Aluminium/Copper/Plain annealed copper for class 2
- Insulation: XPLE (Cross Linked Polyethylene)
- No.of Cores: 1core, 2core, 3core 4core, 5core, 3+1core, 3+2core, 4+1core
- Cross Section Area: 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2,400mm2. etc
- Bedding: PVC (Polyvinyl Chloride)
- Armouring: SWA (Steel Wire Armour)/STA(Steel Tap Armoured)
- Sheath: PVC (Polyvinyl Chloride)/LSZH PVC
- Core Identification: 1 Core: Brown
- 2 Cores: Brown, Blue
- 3 Cores: Brown, Black, Grey or Brown, Blue, Green/Yellow
- 4 Cores: Brown, Black, Grey, Blue
- 5 Cores: Brown, Black, Grey, Blue, Green/Yellow
- International Standards: IEC 60228, IEC 60502, BS5467 or according to your requirement
LV armoured cable Application:
The swa armoured cable designed for use in mains supply electricity. These cables are provided with mechanical protection are therefore suitable for external use and direct burial.Such as: power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals and high-rise buildings.
LV SWA Armoured Cable Parameter Date
No. Cores | Conductor Cross Section Area (mm²) | Cable Cross Section Area (mm²) | Actual Armoure Section Area (mm²) | Overall Diameter (mm) | Gland Size | Cleat Size | Nominal Weight (kg/km) |
2 | 16 | 326.69 | 42 | 20.4 | 25 | 9 | 978 |
2 | 25 | 455.94 | 42 | 24.1 | 25 | 10 | 1290 |
2 | 35 | 426.17 | 60 | 23.3 | 25 | 10 | 1500 |
2 | 50 | 522.53 | 68 | 25.8 | 32 | 11 | 1890 |
2 | 70 | 660.19 | 80 | 29 | 32 | 12 | 2450 |
2 | 95 | 860.05 | 113 | 33.1 | 40 | 14 | 330 |
3 | 16 | 366.25 | 45 | 21.6 | 25 | 10 | 1152 |
3 | 25 | 510.45 | 62 | 25.5 | 32 | 11 | 1800 |
3 | 35 | 615.44 | 68 | 28 | 32 | 11 | 2230 |
3 | 50 | 637.62 | 78 | 28.5 | 32 | 12 | 2490 |
3 | 70 | 813.92 | 90 | 32.2 | 40 | 14 | 3290 |
3 | 95 | 1074.67 | 128 | 37 | 40 | 16 | 4440 |
4 | 16 | 411.66 | 49 | 22.9 | 25 | 11 | 1360 |
4 | 25 | 597.98 | 70 | 27.6 | 32 | 12 | 2160 |
4 | 35 | 725.47 | 78 | 30.4 | 32 | 12 | 2690 |
4 | 50 | 803.84 | 90 | 32 | 32 | 14 | 3130 |
4 | 70 | 1115.71 | 131 | 37.7 | 40 | 16 | 4500 |
4 | 95 | 1365.03 | 147 | 41.7 | 50 | 18 | 5600 |
5 | 16 | 411.66 | 72 | 22.9 | / | 10 | 1400 |
5 | 25 | 655.64 | 88 | 28.9 | / | 12 | 2100 |
5 | 35 | 808.87 | 100 | 32.1 | / | 14 | 2580 |
5 | 50 | 1133.54 | 144 | 38 | / | 16 | 3850 |
