Low Voltage ABC Cable

Aerial Bundle Cables, often referred to as Aerial Bundled Conductors or simply ABC, are cables for overhead line power, so called for combining multiple single core cables together. With applications including temporary power distribution to street lighting and secondary pole-to-pole service cables, they are lightweight stranded aluminium conductors, both single core and multi-cores.

*The price of the product is determined by the volume of your order. We always try to provide our customers with unique discounts and delivery times for their order.

DESCRIPTION
SPECIFICATION
TECHNICAL & SALES SUPPORT

Low Voltage ABC Cable Application

LV Aerial Bundle Cables are designed to supply 600/1000 volt aerial service for temporary service at construction sites, as a service drop (power pole to service entrance), as a secondary cable (pole to pole) or street lighting.

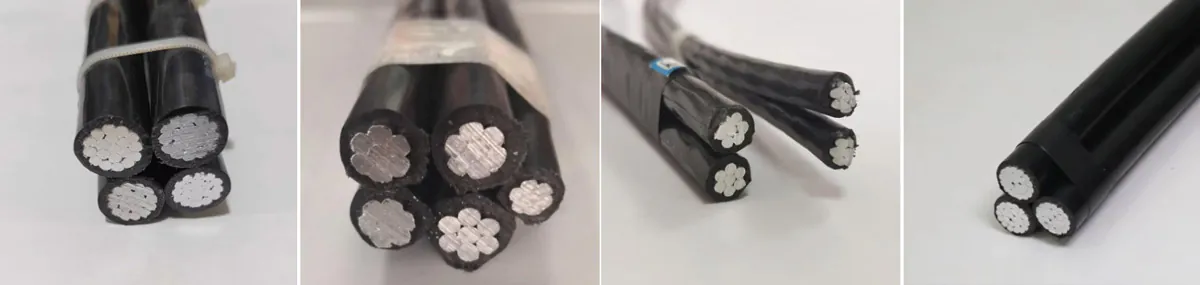

abc-cable-01

LV ABC Cable Standards

Our Low Voltage ABC Cable are manufactured in accordance with a range of national standards – British standard BS7870, French standard NF C33 209, Australasian standard AS/NZS 3560 Part 1, and IEC standards IEC 60502-1, TNB Specification, and HD 626 S1. They have a voltage rating of 0.6/1kV. With the insulation it also meets Class II according to IEC 61140 in protecting against electric shock. Aerial Bundle Cables have an operating temperature range of -40℃ to +80℃ and can be installed in temperatures as low as -20℃. LV ABC Cable are unscreened and without an additional outer sheath.

The Low Voltage ABC cable have both phase conductors and a neutral conductor – both Class 2 stranded Aluminium – with core identification being provided by ribs on the insulation: Phases by longitudinal ribs (I, II, III), Neutral core by longitudinal ribs (≤ 50 mm2 min.12 ribs; ≥ 50 mm2 min.16 ribs).

abc-cable-02

LV ABC Cable Construction

Phase Conductor: AAC1350
Neutral Conductor:AAC1350 /AAAC1120/AAAC6201/ACSR,
Insulation:PE/XLPE/PVC/LDPE/HDPE.

ABC Cable NFC 33-209 Standard

Number of Cores x Nominal Cross Section	Overal Diameter	Weight	Maximum Conductor Resistance	Minimum Breaking Load	Current Rating
No.x mm^2	mm	Kg/Km	Ω/Km	KN	A
2×10 RM	12.8	93	3.08	1.5	38
4×10 RM	15.4	183	3.08	1.5	38
2×16 RM	14.8	129	1.91	2.3	72
2×16 RN + 2×1.5 RE	14.8	176	1.910 / 12.100	2.3	72
4×16 RM	17.8	257	1.91	2.3	72
4×16 RN + 2×1.5 RE	17.8	304	1.910 / 12.100	2.3	72
2×25 RM	18	202	1.2	3.8	107
2×25 RM + 2×1.5 RE	18	249	1.200 / 12.100	3.8	107
4×25 RM	21.7	404	1.2	3.8	107
4×25 RM + 2×1.5 RE	21.7	451	1.200 / 12.100	3.8	107
2×35 RM	20.8	269	0.868	5.2	132
2×35 RM + 2×1.5 RE	20.8	316	0.868 / 12.100	5.2	132
4×35 RM	25.1	539	0.868	5.2	132
4×35 RM + 2×1.5 RE	25.1	586	0.868 / 12.100	5.2	132
2×50 RM	23.4	352	0.641	7.6	165
2×50 RM + 2×1.5 RE	23.4	399	0.641 / 12.100	7.6	165
1×54.6 RM + 3×25 RM	21.7	507	0.630 / 1.200	3.8	107
1×54.6 RM + 3×25 RM + 1×16 RM	24.3	573	0.630 / 1.200 / 1.910	3.8/2.3	107/72
1×54.6 RM + 3×25 RM + 2×16 RM	29.7	639	0.630 / 1.200 / 1.910	3.8/2.3	107/72
1×54.6 RM + 3×25 RM + 3×16 RM	31.1	705	0.630 / 1.200 / 1.910	3.8/2.3	107/72
1×54.6 RM + 3×35 RM	25.1	615	0.630 / 0.868	5.2	132
1×54.6 RM + 3×35 RM + 1×16 RM	28.1	680	0.630 / 0.868 / 1.910	5.2/2.3	132/72
1×54.6 RM + 3×35 RM + 2×16 RM	34.3	748	0.630 / 0.868 / 1.910	5.2/2.3	132/72
1×54.6 RM + 3×35 RM + 3×16 RM	35.9	814	0.630 / 0.868 / 1.910	5.2/2.3	132/72
1×54.6 RM + 3×35 RM + 1×25 RM	28.1	714	0.630 / 0.868 / 1.200	5.2/3.8	132/107
1×54.6 RM + 3×50 RM	28.2	741	0.630 / 0.641	7.6	165
1×54.6 RM + 3×50 RM + 1×16 RM	31.6	806	0.630 / 0.641 / 1.910	7.6/2.3	165/72
1×54.6 RM + 3×50 RM + 2×16 RM	38.6	875	0.630 / 0.641 / 1.910	7.6/2.3	165/72
1×54.6 RM + 3×50 RM + 3×16 RM	40.4	940	0.630 / 0.641 / 1.910	7.6/2.3	165/72
1×54.6 RM + 3×50 RM + 1×25 RM	31.6	841	0.630 / 0.641 / 1.200	7.6/3.8	165/107
1×54.6 RM + 3×70 RM	33	950	0.630 / 0.443	10.2	205
1×54.6 RM + 3×70 RM + 1×16 RM	37	1014	0.630 / 0.443 / 1.910	10.2/2.3	205/72
1×54.6 RM + 3×70 RM + 2×16 RM	45.2	1083	0.630 / 0.443 / 1.910	10.2/2.3	205/72
1×54.6 RM + 3×70 RM + 3×16 RM	47.3	1148	0.630 / 0.443 / 1.910	10.2/2.3	205/72
1×54.6 RM + 3×70 RM + 1×25 RM	37	1048	0.630 / 0.443 / 1.200	10.2/3.8	205/107
1×54.6 RM + 3×70 RM + 2×25 RM	45.2	1150	0.630 / 0.443 / 1.200	10.2/3.8	205/107
1×54.6 RM + 3×70 RM + 3×25 RM	47.3	1250	0.630 / 0.443 / 1.200	10.2/3.8	205/107
1×54.6 RM + 3×95 RM	37.4	1176	0.630 / 0.320	13.5	240
1×54.6 RM + 3×95 RM + 1×16 RM	41.9	1243	0.630 / 0.320 / 1.910	13.5/2.3	240/72

Aerial Bundled Cables to IEC 60502

Number of cores x nominal cross section	min. breaking load of conductor strand	Current rating in the air	Outer diameter	Total weight
mm^2	kN	A	mm	kg/km
1x16+1x 25 RM	6.4	61	15.3	160
3x16+1x 25 RM	6.4	61	19	290
3x25+1x 25 RM	6.4	84	23.2	400
3x35+1x 25 RM	6.4	104	25.6	500
3x50+1x 35 RM	8.9	129	30	680
3x70+1x 50 RM	12.1	167	34.9	920
3x95+1x 70 RM	18	209	40.6	1270
3x120+1x 70 RM	18	246	44.1	1510
3x150+1x 95 RM	24.2	283	49.2	1870
3x185+1x120 RM	30.8	332	54.9	2340
3x25+1x25+1x16 RM	6.4	84	23.2	470
3x35+1x25+1x16 RM	6.4	104	25.6	560
3x50+1x35+1x16 RM	8.9	129	30	740
3x70+1x50+1x16 RM	12.1	167	34.9	980
3x95+1x70+1x16 RM	18	209	40.6	1330
3x120+1x70+1x16 RM	18	246	44.1	1580
3x150+1x95+1x16 RM	24.2	283	49.2	1940
3x185+1x120+1x16 RM	30.8	332	54.9	2410

Aerial Bundled Cables to ASNZS 3560.1

Number of cores x nominal cross section	min. breaking load of conductor strand	Current rating in the air	Outer diameter	Total weight
mm^2	kN	A	mm	kg/km
2x16 RM	4.4	78	15	140
2x25 RM	7	105	17.6	210
2x35 RM	9.8	125	19.6	270
2x50 RM	11.4	150	22.8	370
2x95 RM	15.3	230	30.6	680
3x25 RM	8.8	97	19	310
3x35 RM	9.8	120	21.1	410
3x50 RM	11.4	140	24.6	550
4x16 RM	8.8	74	18.1	290
4x25 RM	14	97	21.2	410
4x35 RM	19.6	120	23.7	550
4x50 RM	28	140	27.5	740
4x70 RM	39.2	175	31.9	1000
4x95 RM	53.2	215	36.9	1370
4x120 RM	67.2	250	40.6	1690
4x150 RM	84	280	43.9	2020
