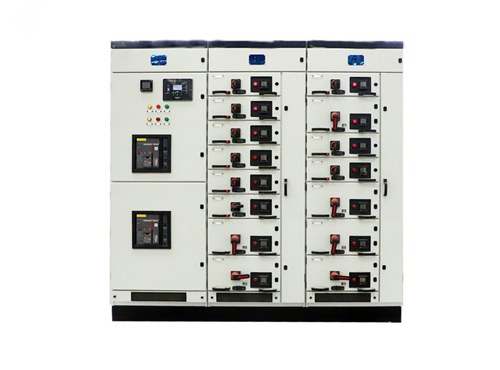

GGD/GGJ Low Voltage Fixed-mounted Switchgear

GGD Low Voltage Fixed-mounted Switchgear Description:

GGD fixed switchgear is engineered for power systems within industrial and mining enterprises, power plants, and substations. It accommodates AC 50-60Hz, with rated working currents up to 3150A in distribution systems. Its primary function is to facilitate the conversion, distribution, and control of electrical energy for power, lighting, and distribution equipment. Thanks to its efficient electrical performance, superior safety features, and broad application spectrum, GGD fixed switchgear is indispensable in contemporary industrial and civil infrastructure.

GGD Low Voltage Fixed-mounted Switchgear Environmental Conditions:

• The ambient air temperature shall not be higher than +40 ° C, not lower than -5 ° C, and the average temperature within 24 hours shall not be higher than +35 ° C;
• For indoor installation and use, the altitude of the use place shall not exceed 2000m;
• The relative humidity of the surrounding air should not exceed 50% at the maximum temperature of +40℃, and a larger relative humidity should be allowed at a lower temperature (such as 90% at +20℃), considering that the effect of condensation may occur occasionally due to changes in temperature;
• The inclination between the equipment and the vertical plane shall not exceed 5°;
• The equipment should be installed in a place without violent vibration and impact, and not enough to corrode the electrical components;
• Users have special requirements can be negotiated with the manufacturer to solve.

GGD Low Voltage Fixed-mounted Switchgear Features:

• 1. Strong applicability, wide selection of main components, many domestic and imported brand products are interchangeable.
• 2. Good installation flexibility, even if the relevant departments force to phase out certain products in the future, because the GGD type cabinet has good installation flexibility, it will not cause installation troubles due to the modification or update of components.
• 3. The parts adopt modular standard design, with mold mounting holes, general coefficients, etc.
• 4. According to the design requirements of industrial products, use the golden ratio method to design the cabinet body and the division size of each part, so that the whole cabinet is beautiful and refreshing.
• 5. The GGD cabinet is designed with full consideration of the heat dissipation problem during the operation of the cabinet.
• 6. The top cover of the cabinet can be removed when needed, which is convenient for the assembly and adjustment of the main bus on site.
• 7. The four corners of the cabinet top are equipped with lifting rings for lifting and shipping.
• 8. The protection level of the whole cabinet is IP30, and users can also choose between IP20-IP40 according to the requirements of the site environment.
