ACSR Conductor

Used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

*The price of the product is determined by the volume of your order. We always try to provide our customers with unique discounts and delivery times for their order.

DESCRIPTION
SPECIFICATION
TECHNICAL & SALES SUPPORT

Aluminum Conductor Steel Reinfored

Professional ACSR conductor cable manufacturer from China, Meet your kinds of requirement acsr conductor cable With over 30 years production experience and 15 years of export experience, factory price without any third party. Can be customized your ideal size.

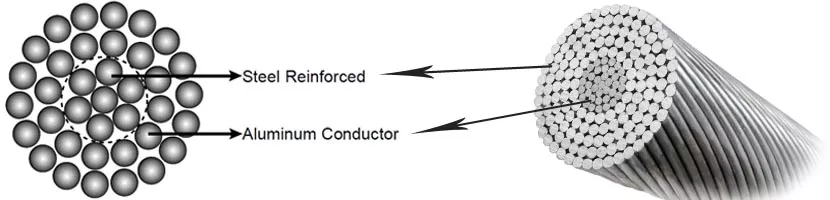

ACSR-Conductor-02

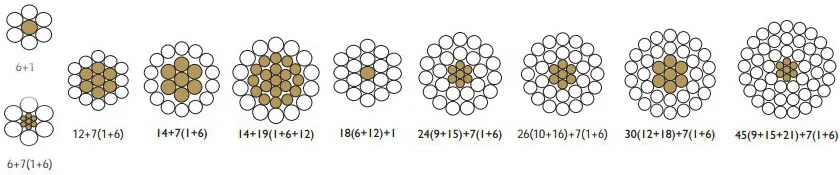

ACSR Conductor Construction

The mixed construction of ACSR makes it a very flexible medium from the design point of view. By varying the relative proportions of aluminium and steel, the ideal conductor for any particular application can be produced. Generally, ACSR consists of a galvanized steel core of 1 wire, 7 wires or 19 wires surrounded by concentric layers of aluminium wire. When a conductor with a high current carrying capacity and comparatively low strength is required, special construct.

Character: 1. Aluminum Conductor; 2. Steel Reinforced; 3. Bare.

ACSR-structure-01

ACSR Conductor Application:

BS215 Standard ACSR Conductor Technical Characteristics

Code name	Nominal aluminum area	Stranding structure		Sectional area of aluminum	Total sectional area	Overall diameter	Total	Current Rating
Code name	mm2	Al. No.	St. No.	mm2	mm2	mm	kg/km	A
Gopher	25	6	1	26.24	30.62	7.08	106	126
Weasel	30	6	1	31.61	36.88	7.77	128	134
Fox	35	6	1	36.66	42.77	8.37	149	147
Rabbit	50	6	1	52.88	61.7	10.05	214	185
Mink	60	6	1	63.18	73.71	10.98	255	174
Horse	70	12	7	73.37	116.2	13.95	538	268
Cat	90	6	1	95.4	111.3	15.9	386	248
Dog	100	6	7	105	118.5	14.15	394	278
Tiger	125	30	7	131.1	161.7	16.52	602	323
Dingo	150	18	1	158.7	167.5	16.75	506	349
Wolf	150	30	7	158.1	194.9	18.13	726	355
Lynx	175	30	7	183.4	326.2	19.53	842	386
Panther	200	30	7	212.1	261.5	21	974	421
Lion	225	30	7	238.5	294.2	22.26	1095	448
Bear	250	30	7	264	325.6	23.45	1213	481
Goat	300	30	7	324.3	400	25.97	1489	542
Sheep	350	30	7	374.1	461.4	27.93	1718	592
Antilope	350	54	7	373.1	421.5	26.73	1411	588
Bizon	350	54	7	381.8	431.3	27	1444	595
Deer	400	30	7	429.3	529.5	28.89	1971	639
Zebra	400	54	7	428.9	484.5	28.62	1621	635
Moose	500	54	7	528.7	597.2	31.77	1999	763
